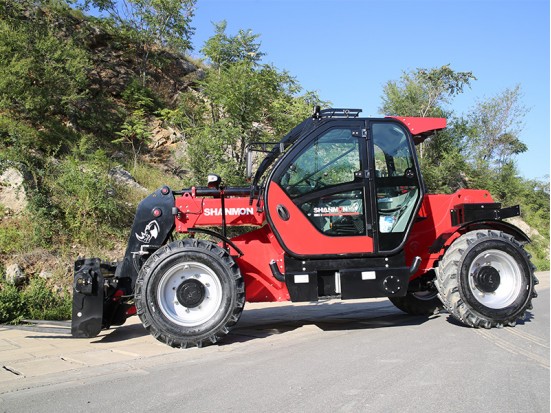

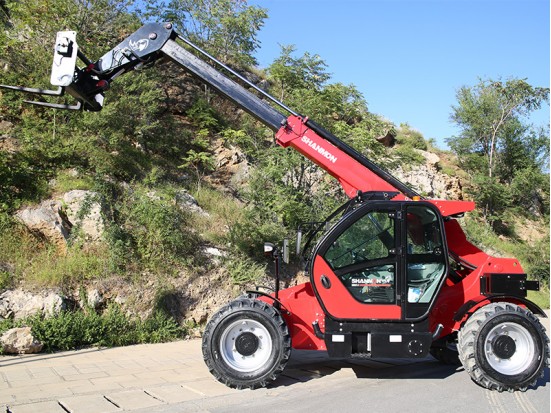

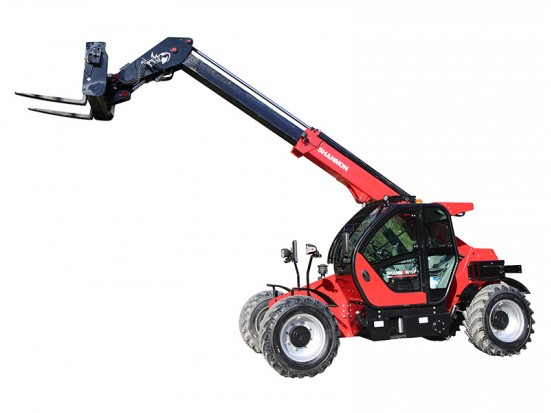

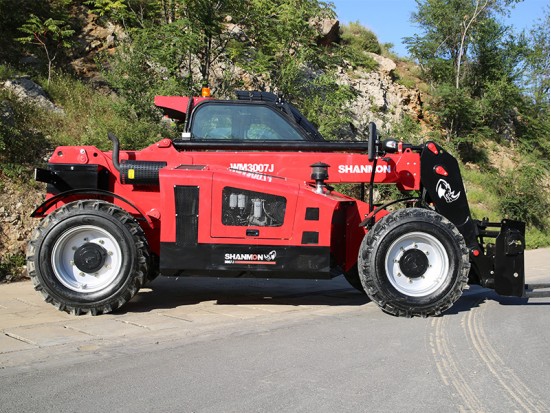

總尺寸Overall Dimension

1

整機總長（鏟斗放置地面）Length(with bucket on ground)

6490±50mm

2

整機總寬(輪胎外沿、機罩外沿)Overall width（Tire outer edge, hood outer
edge)

2280±20mm

3

鏟斗寬度Load Bucket width

 2250±10 mm

4

整機高度（到駕駛室頂）Height(To the top of the cabin)

3580±20mm

5

軸距Wheel base(MM)

3450±10mm

6

輪距 Wheel Tread(MM)

1855±10mm

裝載主要技術參數 Main Loading Technical Specification

1

額定載重量Rated load

3000KG

2

操作重量 Operating weight

8580KG

3

額定斗容 Rated bucket capacity

1.6 m³

4

Z大卸載高度（41°卸料角）
Maximum dump height (41° discharge Angle)

5993mm

5

卸載距離Dump reach

556.7mm

6

轉彎半徑Turning raduis

鏟斗外沿/內輪胎中心
Bucket outside rim/inside tire center

6200±50/3600±50mm

7

動作時間Actuation time

舉升時間  空載/滿載
Lifting time Empty/full load

10.7/15.5 S

下降時間 Falling time

7.7 S

翻斗時間 Tipping time

6.7 S

挖掘主要技術參數Main Digging Technical Specification

發動機 Engine

1

發動機型號Engine model

YC4A105Z-T20

2

冷卻形式Cooling type

水冷Water cooling

3

額定功率 Rated power

75 (kW)

4

排氣量Total exhaust of cylinder

4.8(L)

5

額定轉速Rated speed

2200(r/min)

6

Z大扭矩Max. Torque

400(N.M)

傳動系統 Transmission System

1

液力變矩器Torque Converter

型號Model

290

冷卻方式Cooling type

壓力油循環Pressure oil circulating

2

變速箱Transmission case

型號Model

28

形式Type

電液同步換檔
Electrohydraulic synchronous shift

3

橋Axle

前驅動橋型號Front Axle Model

 WL96Q2W

后驅動橋型號Rear Axle Model

WL96Q2A

4

變速箱檔位 Gear shift position

4 F、 4 R前四后四檔位

5

 速度Speed（F/R）km/h

前進1檔  F1:  6 km/h
前進2檔  F2:  14km/h
前進3檔  F3:  23km/h
前進4檔  F4:  36km/h
后退1檔  R1:  6km/h
后退2檔  R2:  14km/h
后退3檔  R3:  23km/h
后退4檔  R4:  36km/h

6

輪胎型號Tire size

                16/70-24

液壓系統 Hydraulic system

1

工作泵排量Working pump displacement

63ml/r

2

工作泵壓力Working pump pressure

20Mpa

3

轉向器型號 Steering gear model

BZZ-500
